Type 82 "Orange Yeoman" radar

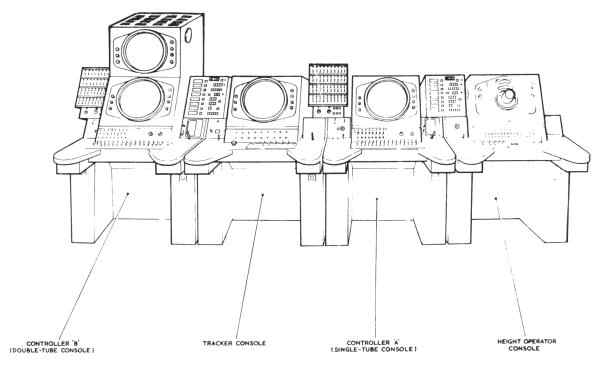

Control Team Consoles

Comprehensive telephone and R/T communications facilities are installed. Telephone communications embrace inter-communication within the ATCRU, communication with local airfields and communication with remote radar heads. R/T communications enable ATCRU personnel to have direct conversation with the pilots of aircraft under surveillance.



CLASS:

Fixed ground radar installation













PERFORMANCE:

Coverage

(1) Bearing

360 deg





(2) Elevation

0 to 30 deg





 Height

60,000ft (30 deg cosec2)





(4) Displayed range

150 miles (local video)







250 miles (remote-radar video)





(5) Actual range

130 miles on 20 sq metre target







Note... 1 mile = 2000yd



Accuracy

(1) X

better than l000yd





(2) Y

better than l000yd





(3) H

better than 3000ft at 130 miles



Discrimination

(1) Range

400yd





(2) Bearing

0.8 deg
